AHP Merkle specialises in the production of hydraulic block cylinders and standard cylinders. There is a large range
of different models with a variety of switching options.
They are ideal for incorporating into mould tools as well as special purpose machines. In addition, AHP Merkle’s
range of block cylinders gives the tool designer the ability to modify the stroke to suit the design.
All cylinders can be supplied with switches indicating forward and retracted positions; and all piston rods are
hardened ground and chromed ensuring a long life for the cylinder. 3D CAD data is available from the website. AHP
Merkle stands for 100% quality, flexibility and continuous innovations. The range embraces:
Block Cylinders, Push Units, AHP Standard Cylinders, DIN Standard Cylinders, Core Pull Units, Short-Stroke
Cylinders, Cube Cylinders, Flanged Cylinders, Double-Lined Cylinders, Circular Block Cylinders, Hydraulic
Cylinders with external guide, Screw In Cylinders, Stamping Cylinders, Block Cylinders with non rotating piston rod,
Rotating Clamp Units, Rotary Drive Units, Block Cylinders with wedge clamping element or guide element.
As well as quality, flexibility and continuous innovations are at the heart of the company, which aims to set the future
in motion with its fine products. “We’ll stake our reputation on it.”
The AHP Merkle Range
http://en.ahp.de/products/product-overview/
Its website includes a link to its ahp.book This is the complete ahp-program in one book, including valuable
information about how to select and order a cylinder, Tips and Tricks for cylinder assembling and application.
The integrated CD with the latest CAD-Data for all cylinders simplifies the design work.
For further information visit:
http://en.ahp.de/products/product-overview/
E-mail: sales@cytec-uk.com
Or call us on +44 (0) 161 678 7090
Cytec Systems began trading in the UK and Ireland in 1997 and has grown into one of the leading suppliers of hydraulic
cylinders to the mould and die industry. Its range of products now covers both the Cytec range and the AHP Merkle
range of standard hydraulic cylinders. In 2016 we were appointed agents for Ermanno Balzi range of products.
Std. Cylinders

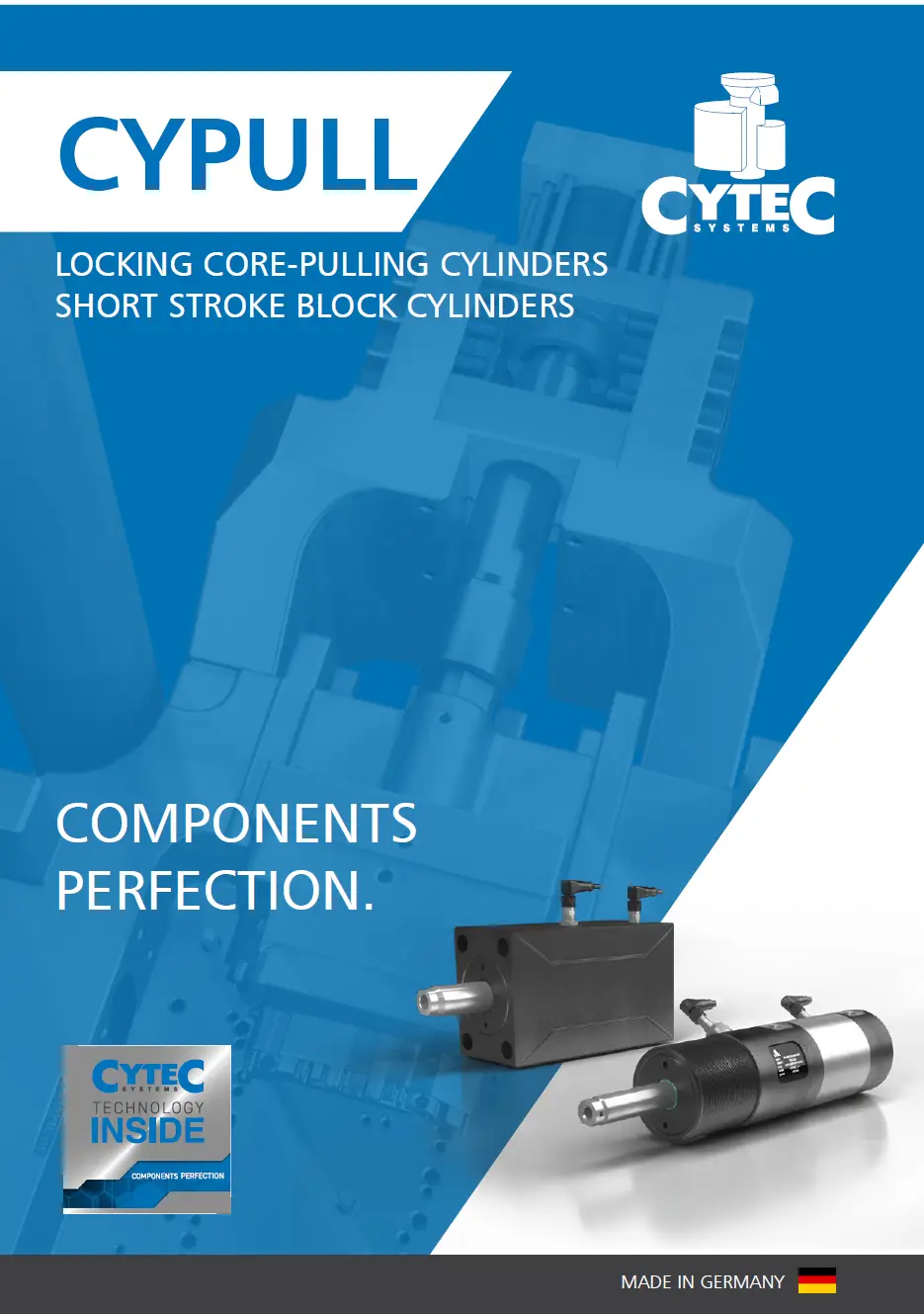

AHP merkle catalogues
Many cylinders are available from stock or on short lead times.
Full CAD data is available for all cylinders. The range includes:
CyBlock
This range of locking cylinders is designed for use with moving side cores on mould tools.
Once locked the cylinders hold far higher forces than conventional cylinders, without the
need to maintain hydraulic pressure. The HS version locks with preload. The HDD and
HSD versions are for pressure die cast moulds.
CyPull
Based on the successful CyPull cylinder the CyBlock is a locking cylinder with a body
design the same as a conventional block cylinder. This allows easy mounting and adjusting to the mould tool.
Others in the clamping technology range:
CyTec Systems UK Limited have been appointed as distributors for Ermanno
Balzi products in the UK and Ireland.
Ermanno Balzi developed a rapid plug an unplug systems for cooling circuits on
mould tools. A complete range of baffles and plugs is offered.
Ermanno Balzi have also developed innovative products for 2 stage ejection an
dynamic gas venting systems as well as the “Ecovent” systems for cavity venting.
Full details can be found on their website www.ermannobalzi.com
Dynamic gas venting products
CyTec Systems UK Ltd.
Unit H - 100 Shaw Road
(Off Daltry Street)
Oldham, OL1 4AB
United Kingdom
Special applications
Automotive production line
Docking system with safety lock

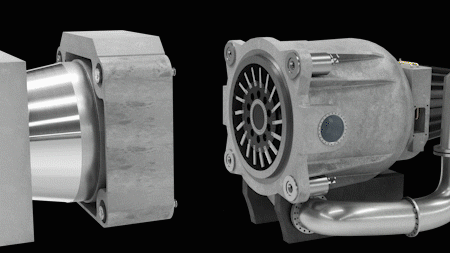

The CyDock docking system guarantees the ultimate in precision and safety using simple
technology. A coupling bolt is automatically positively locked by means of radially
operating locking segments. On request this is done free from play. The coupling is
released by applying hydraulic or pneumatic force.
Holding forces of up to several hundred kN can be achieved.
Linear Actuator
fully integrated
the powerful alternative to
hydraulic cylinders
Rapid plug an unplug systems
for cooling circuits
BIRMINGHAM, UK
CyDock
CyTab

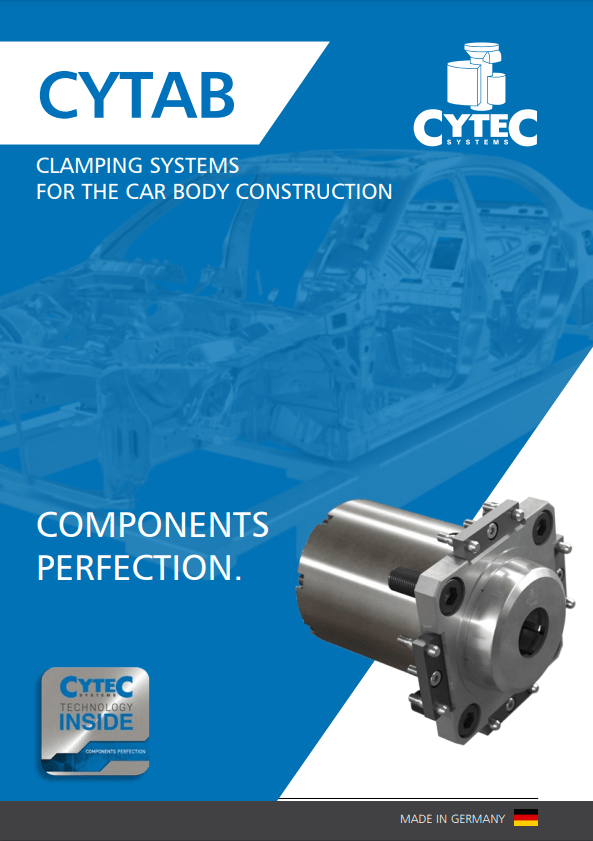

CyTab clamping system
for body framing in the automotive industry.
Hydromechanical clamping system CyTab STP090
Hydromechanical clamping system CyTab STP090 Scope with additional grasping stroke
