S-Series HD – Heavy-Duty Fork Milling Head

PDF Datasheet

Compact, light, enormously strong: the CYTEC S-Series HD is the heavy-duty version of the slim S-Series fork milling head – the ideal choice for machining structural components that are difficult to access. UHT DirectDrive motors deliver maximum torque on both axes while keeping the head remarkably compact.

With ±110°/±360° motion, ±2″ positioning accuracy and massive hydraulic clamping, the S-Series HD is built for structural part machining with maximum rigidity – in aerospace, tool and mold making, and heavy steel applications.

1,410 Nm Max. Torque (UHT)
±2″ Position Accuracy
3,000 Nm Hydraulic Clamping
495 kg Total Weight approx.

Technical Data

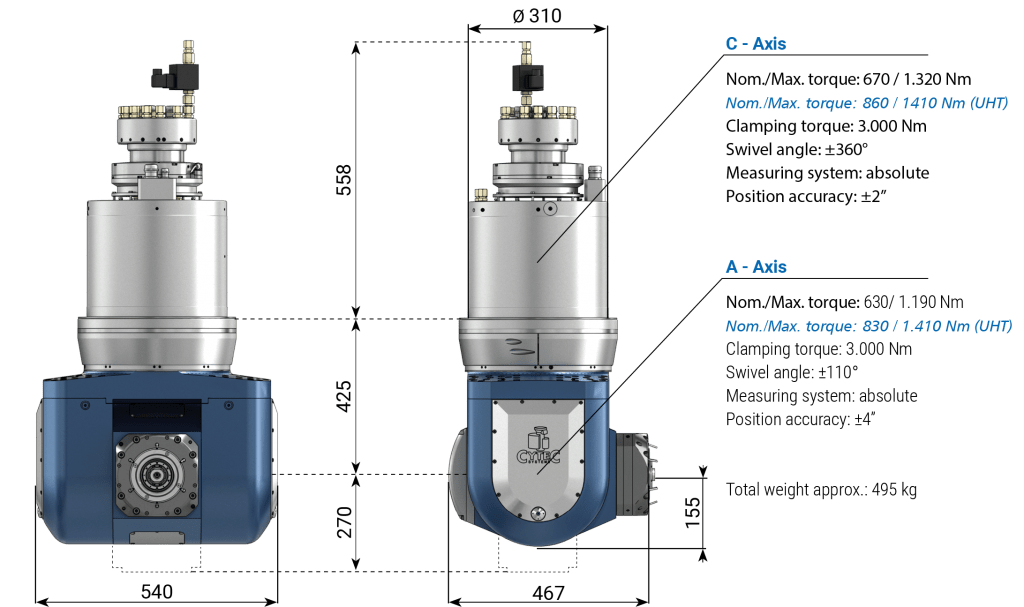

CYTEC CYMILL S-Series HD heavy-duty fork milling head
S-Series HD milling head

C-Axis

Nom./max. torque670 / 1,320 Nm
UHT nom./max. torque860 / 1,410 Nm
Clamping torque3,000 Nm
Swivel range±360°
Position accuracy±2″

A-Axis

Nom./max. torque630 / 1,190 Nm
UHT nom./max. torque830 / 1,410 Nm
Clamping torque3,000 Nm
Swivel range±110°
Position accuracy±4″

General

TypeHeavy-duty 2-axis fork head, UHT
Tool interfaceHSK-A100
Total weightapprox. 495 kg
Ideal forStructural parts, aerospace
All technical data in the S-Series HD PDF datasheet

Compatible CYSPEED Motor Spindles

The S-Series HD is driven by CYSPEED motor spindles from the CYTEC modular kit. The following spindles are mechanically compatible – click a spindle to view its datasheet and performance diagram:

Power (S1/S6)40 / 51 kW
Torque (S1/S6)67 / 85 Nm
Max. speed24,000 rpm
Tool interfaceHSK-A63
Length480 mm
CS-40-160-S motor spindle performance diagram
Power (S1/S6)45 / 54 kW
Torque (S1/S6)75 / 90 Nm
Max. speed18,000 rpm
Tool interfaceHSK-A63
Length480 mm
CS-45-160-S motor spindle performance diagram
